Quadro V

Art.no: 8025473

Quadro V The Quadro V Series is wallmounted heaters that come in two sizes; 60 and 110. In addition, the water heaters now have an external adjustable thermostat with Eco position.

PRODUCT ADVANTAGES



INSULATION

  • High density CFC free and fire retardant polyurethane foam insulation
  • Leading heat loss performance of less than 70W
  • This can reduce energy costs by up to 15%

LIFE SPAN

When installed correctly, and otherwise adhering to instructions concerning water quality, Høiax fX has an expected life span of at least 20 years.*

STEEL QUALITY

  • 1.4521 Niobium-Titanium stabilized steel
  • Offers extreme protection against corrosion
  • The steel gauge is also thicker and therefore better than those used by others


 * This does not apply to parts, such as thermostat and immersion heater.


Energy Label and Product Fiche
Quadro V 60
Quadro V 110

More info

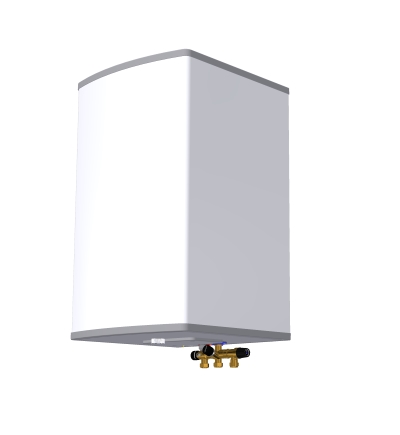

Quadro V 60
  • Suitable for:
    1-2 persons
  • Size:
    450x454x737 mm
  • Watt:
    1950
  • Weight:
    33 kg
  • M3:
    0.23
  • Article no.:
    8025473
  • Load profile:
    M
  • Energy efficiency:
    C

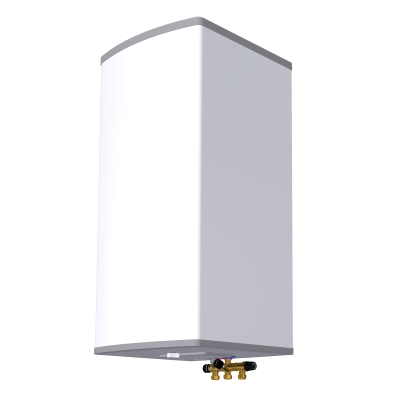

Quadro V 110
  • Suitable for:
    2-3 persons
  • Size:
    450x454x1120 mm
  • Watt:
    1950
  • Weight:
    23 kg
  • M3:
    0.00
  • Article no.:
    8025474
  • Load profile:
    M
  • Energy efficiency:
    C
